PiWars 2018 – Frankentop Mechanical Build pt.2

By Andrea Buforn on Mar 30, 2018 1:16:09 PM

Topics: Projects Technology Events Hardware laptop piwars2018

A few weeks ago Chris, pi-top’s Mechanical Design Engineer, travelled to Shenzhen to get the pi-top China team more involved with the PiWars project. Up until now, they had only been able to provide help and advice remotely. He did some pi-top work as well (the team attended a Raspberry Pi Jam in Shenzhen), but PiWars was very high up on the trip agenda!

 Smaller Frankentop

This month I had a trip booked in to see the pi-top team out in Shenzhen China. They have been following our PiWars build progress on the blogs and giving remote advice where possible, but were keen to get really stuck in.

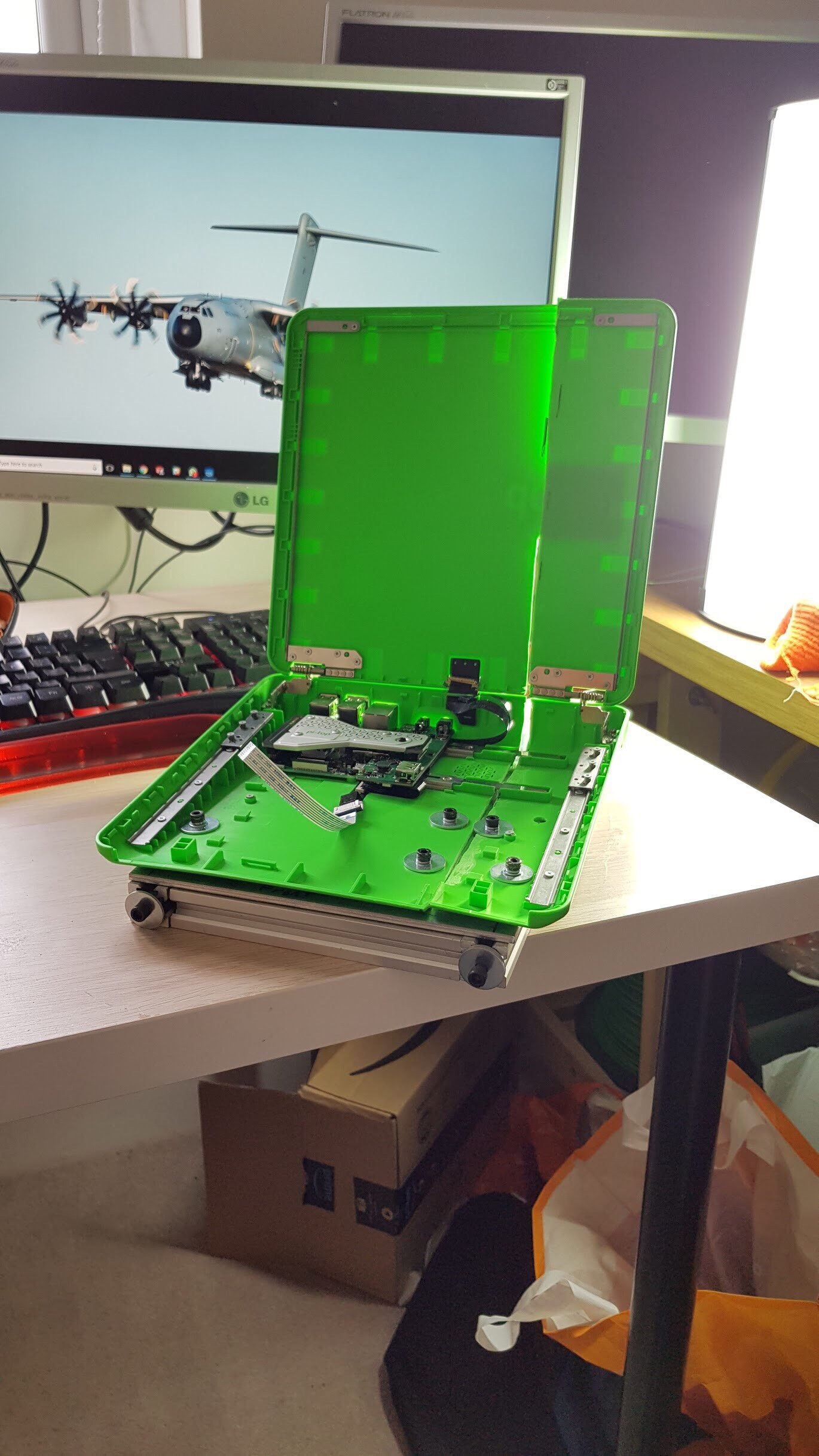

The weekend before I travelled, I knocked up another Frankentop (see last mechanical blog post). However, as you can see in the next picture, this one had a few key differences and improvements!

First up, general fabrication was a marked improvement over the first Frankentop iteration - funnily enough it is much easier to make a good job of cutting a laptop in half on your second attempt! The plastic melted a lot less from hot dremmel cutting discs and the pi-top Mag Rails survived the modification with far less aesthetic damage.

The second was was the undercarriage manufacture. First iteration Frankentop, we used double t-slot width aluminium extrusion. For this one, single t-slot width aluminium extrusion was used, so straight away we have GVW (gross vehicle weight) savings of almost 50%! This, in turn, leads to our robot being faster to drive around and also the battery lasting longer. In addition (and probably more importantly for now) its overall volume was much smaller and therefore easier to fit into a suitcase on a long haul flight to China!

Part Sourcing

With a trip to Shenzhen to see the China team occurring mid PiWars build, it seemed like the perfect opportunity to spend time looking for cool components we incorporate into our robot.

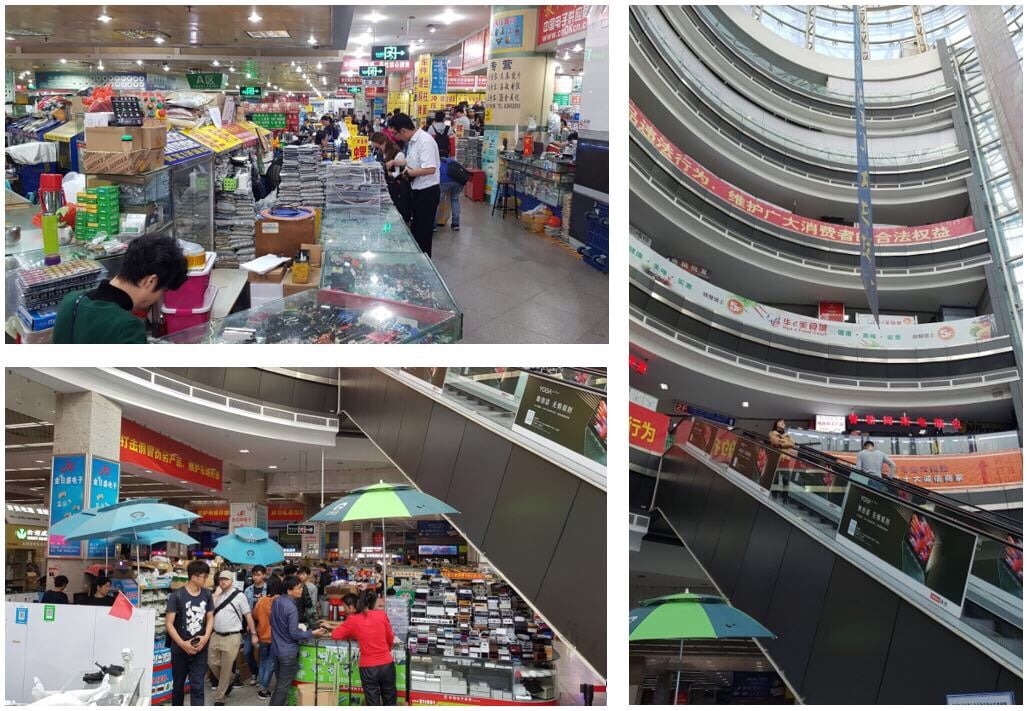

Where the pi-top China team’s office is in Shenzhen, we are very close to Huaqiangbei - this is a major electronics manufacturing hub of the world with huge electronics marketplaces.

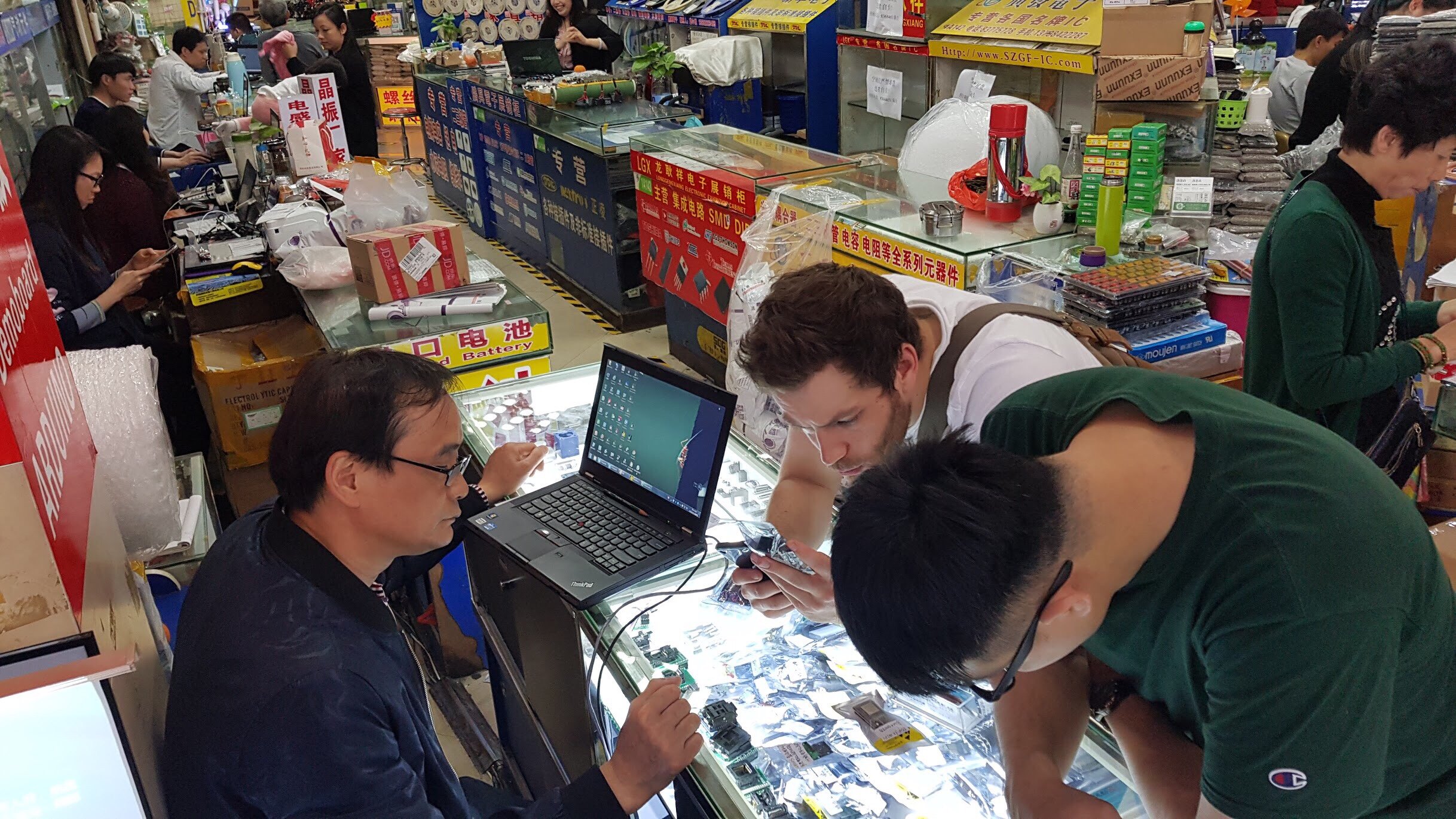

The first stop was pi-top Electronic Design Engineers Wil and Jimmy’s tame PCB supplier. Here, we managed to source come DC motor driver boards for just under £1 each, so a bit of a saving on buying them in the UK!

The next item on the shopping list was DC motors - we wanted to have a variety of different motor speeds and torques, so we could test and find the best motors for each of the PiWars challenges.

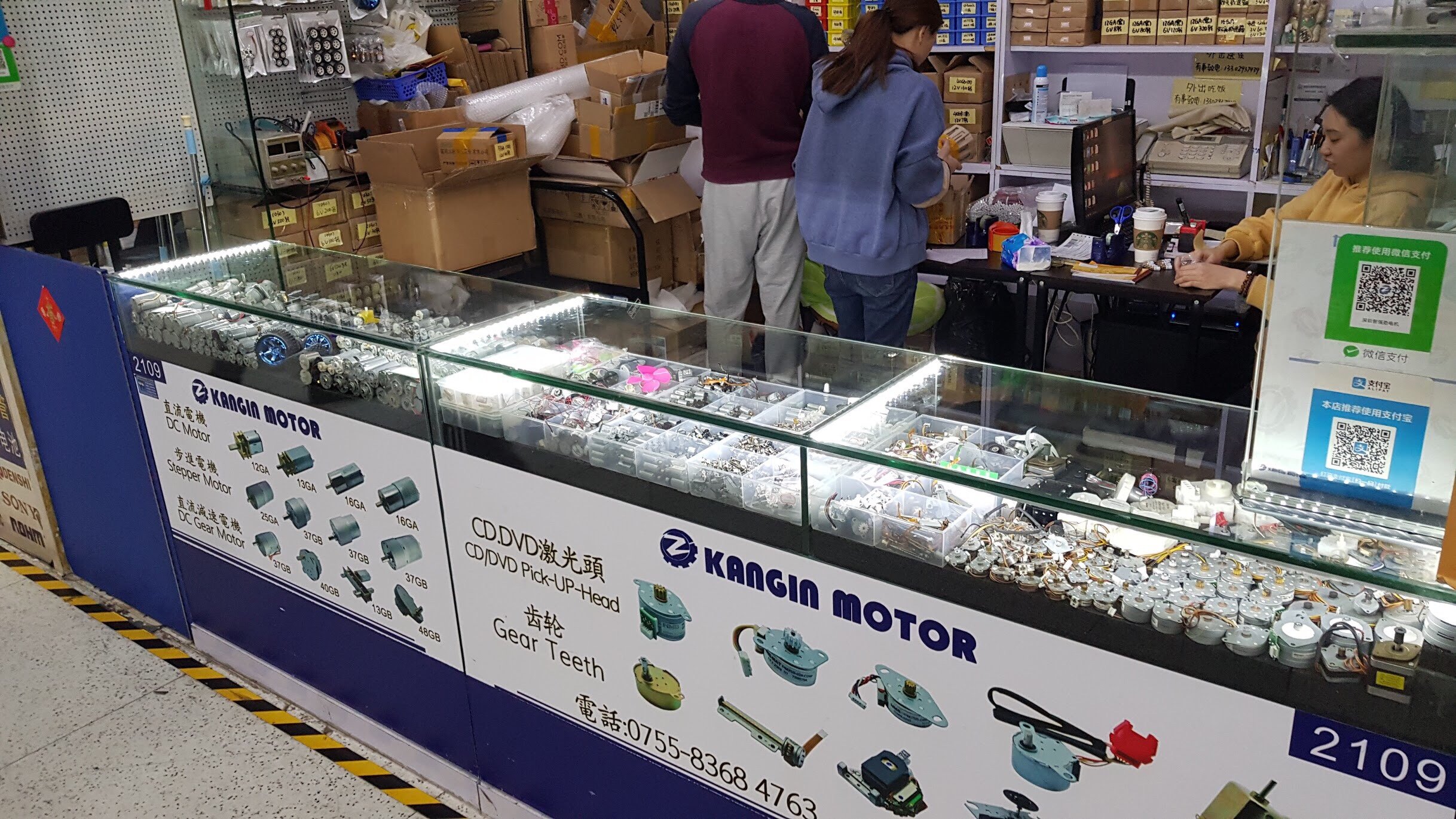

Through trawling the markets, we discovered Kangin Motor company and they supplied every type of motor you could think of! In addition, they stocked a wide range of RC car wheels, so we really lucked out.

Raspberry Jam at Seed Shenzhen

On Sunday 11th March, the pi-top China team attended the Raspberry Jam at Seeed in Shenzhen. It was a really great day out, we got to meet lots of really nice people who were super enthusiastic about hacking and building things with Raspberry Pi computers and similar.

We also had a chance to showcase our new pi-top laptop and discuss a few ideas about our PiWars robot.

4x4 Development Rig

Currently, our PiWars robot is a set up with a dual drive system - we have four DC motors each turning a wheel, but the LHS are driven both together and the RHS are driven both together (much like a tank drivetrain).

One thing as a team we have been keen to develop is a 4x4 drive setup option for the robot. With the successful shopping trip to Huaqiangbei and our new abundance of DC motors and driver boards, Rez (pi-top Electronic Design Engineer, based in Shenzhen, China) took it upon himself to start developing this 4x4 motor drive rig.

The plan is for Rez to get a working prototype of the rig developed and then email across all the designs and code so we can build a replica of it to incorporate it into the PiWars robot build in the UK office.

Motorised sliding keyboard design

Another feature of the pi-top PiWars robot that was developed in China was the motorised sliding keyboard.

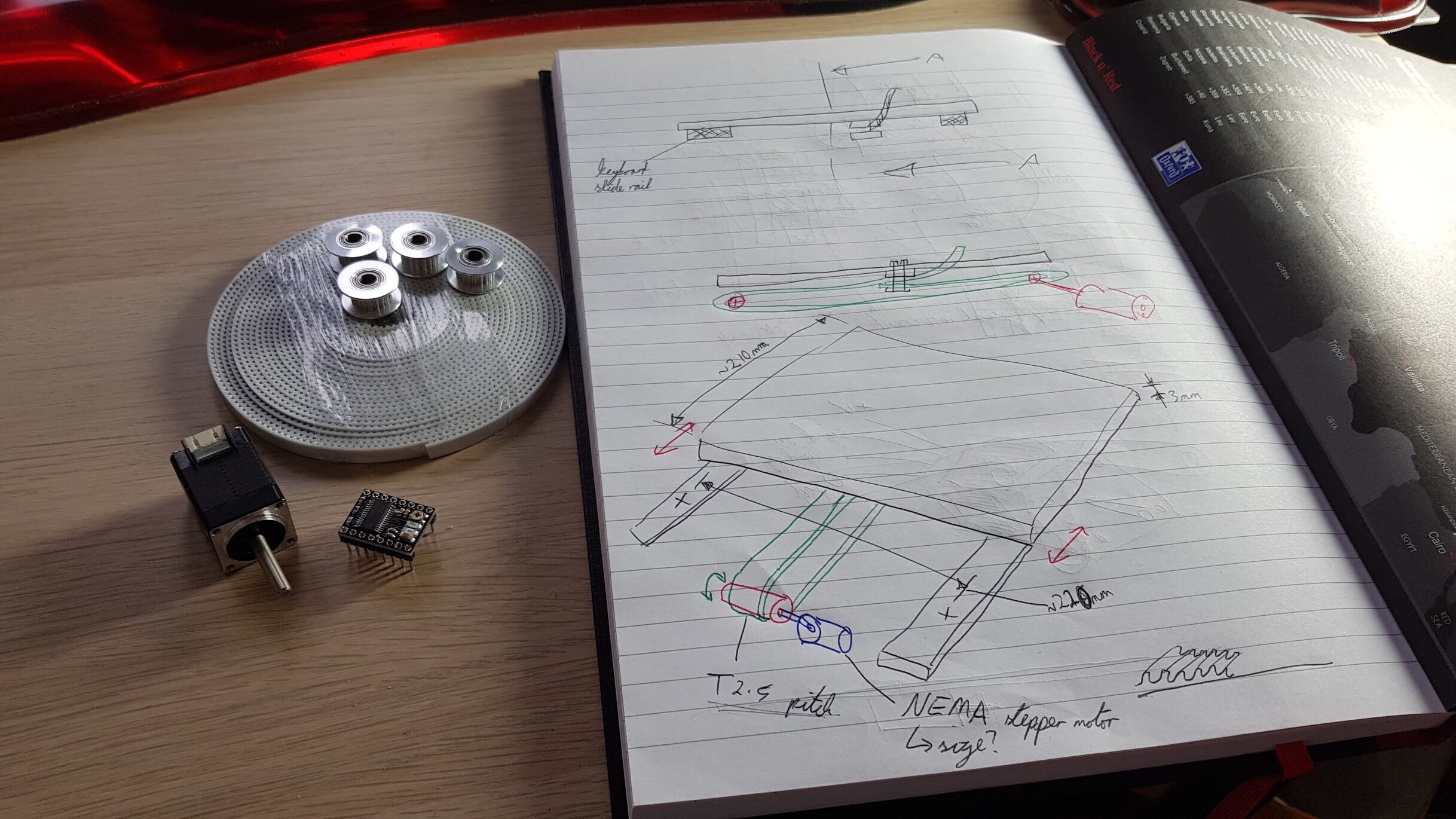

Blacksmith, our Mechanical Design Engineer based in China, and myself developed this design concept:

  • It uses the existing rail sliding mechanism in the pi-top laptop chassis as a basis.
  • A plate is attached, mounting onto each sliding rail carriage.
  • Mounted to the laptop chassis, there is a stepper motor driven belt and pulley system that connects to this plate and drives it back and forwards.

The initial prototype will be made using a NEMA 8 stepper motor and a Polulu DVR8825 driver, along with some GT2 pulleys, sprockets and timing belts.

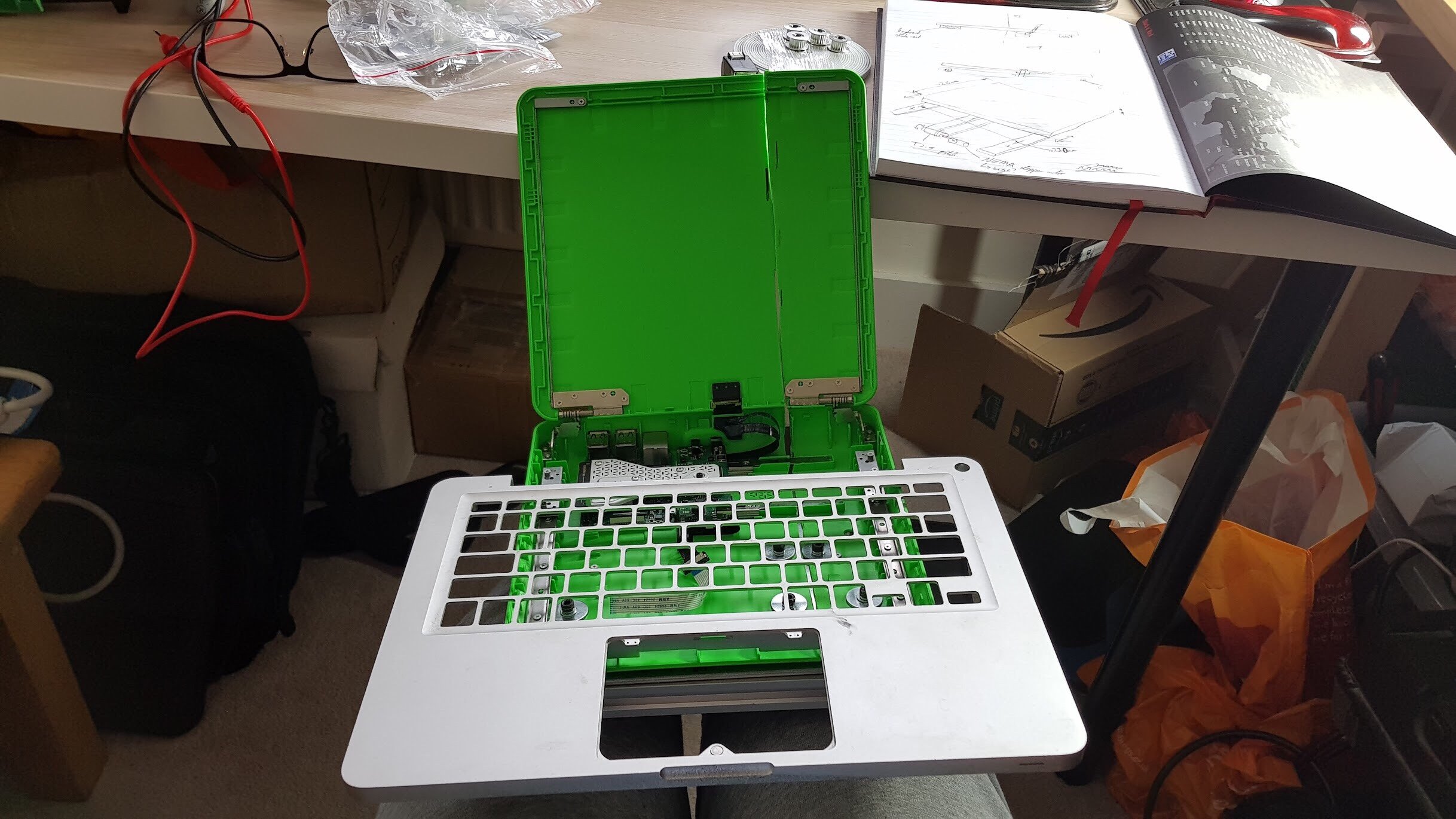

For the keyboard plate, I’ve managed to source a 2008 MacBook Pro Aluminium Unibody keyboard fascia plate.

The surface finish on the fascia plate (brushed aluminium) is quite nice, not too many blemishes, so I think if the build goes well, this could be a good looking feature of the robot.

Further work

That’s all we have time for in this blog! Still on the agenda to hopefully blog about in the future:

  • Motor testing and optimisation for the different piwars challenges.
  • Update from Rez on the 4x4 drivetrain rig development.
  • A working prototype of the motorised sliding keyboard.
  • Competition aesthetic design.

I didn’t have time to put together a fancy video this time, but watch this space (or follow @GetPiTop on Twitter)!
